In the printing and packaging industry, efficient slitting and stable rewinding are the core links to improve production efficiency and product quality.
Product name :
Cut and sliting machineItem No :
GC-850-6SOrder(MOQ) :
1Payment :
30% advance payment, 70% balance before shipment or negotiableProduct Origin :
xiamen,chinaShipping Port :
XIAMEN or Or according to your needsLead Time :
3 monthsCut and sliting machine

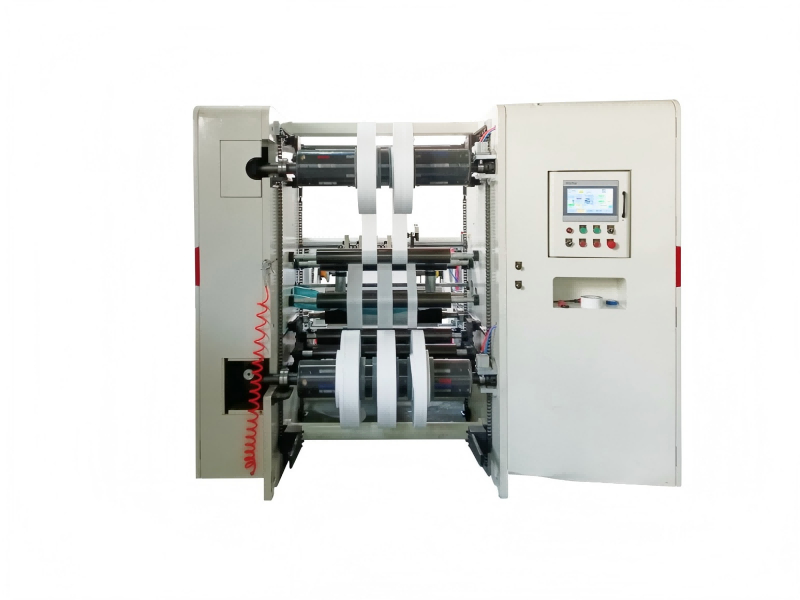

In the printing and packaging industry, efficient slitting and stable rewinding are the core links to improve PP Woven fabric slitting machine efficiency and product quality. With its intelligent control, high-precision slitting and fully automated operation, the GCFQ-1300A fully automatic slitting and rewinding machine has become an ideal equipment for processing large rolls of materials. Whether it is coated paper, kraft paper, coated paper, or single-sided silicon paper, this equipment can easily cope with it and achieve fast and accurate conversion from cloth rolls to finished products.
Core advantages
1. Fully automated intelligent control
Adopting the German Siemens PLC control system and Taiwan Weilun touch screen, the operation interface is intuitive, and one-button start and stop, parameter setting and real-time monitoring are achieved.
Three servo motor drive (main motor + dual rewinding motor) accurately controls tension and speed, and rewinds smoothly without deviation.
Automatic correction system (EPC), equipped with ultrasonic sensors, with a correction accuracy of ±0.2mm, ensures that the edges of the materials are neat and uniform.
2. Efficient slitting, flexible adjustment
Circular knife slitting technology, 10 sets of knives can be freely adjusted manually, supporting a minimum slitting width of 30mm to meet diverse needs.
The slitting speed is up to 350m/min, and the variable frequency speed regulation technology ensures smooth acceleration, suitable for 50-450gsm weight materials.
Automatic waste edge discharge device reduces manual intervention and improves production efficiency.
3. Stable and reliable structural design
Shaftless hydraulic loading, the maximum diameter of the mother roll is 1400mm, the maximum load-bearing capacity is 1200kg, and it is suitable for super large rolls.
Double air shaft winding structure (3 inches), equipped with automatic unloading device, the winding diameter can reach 1000mm, and the roll is tight and not loose.
Gates synchronous belt drive in the United States, with aluminum drive rollers and rubber feed rollers, stable operation, and reduced material wear.
4. Energy saving and safety guarantee
Magnetic powder brake and automatic tension control system, real-time adjustment of tension to prevent material breakage or wrinkles.
Automatic meter counting alarm, residual material shutdown function, worry-free operation after preset parameters.
Key parameters at a glance
| Item | Parameters |
| Maximum width of mother roll | 1300mm |
| Minimum width of rewinding | 30mm |
| Slitting speed | 0-350m/min |
| Slitting accuracy | ±0.2mm |
| Power input | 380V three-phase four-wire, 50Hz |
| Equipment dimensions | 3300×2900×1930mm |
Core configuration and components
Transmission system: 7.5KW servo motor × 3, Gates synchronous belt, aluminum roller drive, cylinder clamping.
Slitting device: 10 sets of circular knives, manual free adjustment, automatic discharge of waste edges.
Unwinding device: shaftless hydraulic feeding, magnetic powder brake tension control.
Control system: Siemens PLC, Weilun touch screen, ultrasonic correction sensor.
Key components: German FAG/Japanese NSK bearings, Taiwan Yadeke pneumatic components, 6-inch air shaft.
Applicable scenarios
Packaging industry: slitting and rewinding of cartons, labels, and flexible packaging materials.
Printing industry: precision processing of coated paper, kraft paper, coated paper and other rolls.
Special materials: efficient processing of single-sided silicon paper and high-weight cardboard.
Why choose GCFQ-1300A?
Precise and efficient: ±0.2mm slitting accuracy, 350m/min high-speed operation, and 30% increase in production capacity.
Intelligent and labor-saving: fully automated operation, reducing labor costs and error rates.
Durable: core components of international first-line brands, equipment life of more than 10 years.
