Gachn Multi-Material Valve Bag Making Machine: Versatile Production for PE, PP, and Paper-Plastic

Gachn Group is proud to introduce its advanced multi-material valve bag making machine, a flexible production solution engineered to handle PE woven bags, PP woven valve sacks, and paper-plastic composite bags on a single platform. In today's dynamic packaging market, manufacturers increasingly need equipment that can adapt to different material types without sacrificing speed or quality. Gachn's latest innovation delivers exactly that — one machine, multiple material capabilities, and uncompromising performance.

Revolutionary Multi-Material Compatibility

Unlike conventional bag making machines that are optimized for a single substrate, Gachn's valve bag making machine features an adaptable forming system that seamlessly processes polyethylene, polypropylene, and paper-plastic composite laminates. This breakthrough eliminates the need for separate production lines for each bag type, dramatically reducing capital investment and factory floor space requirements.

The machine's adjustable heat sealing module automatically calibrates temperature, pressure, and dwell time based on the material being processed — from the lower sealing temperature required for PE to the higher parameters needed for paper-plastics composites. A quick-change folding system allows operators to switch between bag types in under 30 minutes, maximizing production uptime and enabling rapid response to changing customer orders.

High-Speed, Cost-Effective Production

The multi-material bag making machine achieves a stable operating speed of 110-130 bags per minute across all supported material types, with a stable speed of 120 pcs/min for standard PP woven applications. This high output ensures manufacturers can meet large-volume orders while maintaining the flexibility to serve niche markets with specialty bag requirements.

The patented narrow-bottom overlap design cuts raw material waste, saving considerable costs for every batch. The full-servo drive system reduces energy consumption by 10-30% compared to traditional hydraulic machines, automatically entering standby power-saving mode during idle periods.

Versatility for Diverse Applications

The machine covers full standard bag dimensions confirmed by official specs: overall bag length 410–910mm, effective bag length 330–750mm, bag width 300–620mm, inner valve 80–200mm, outer valve 130–300mm, valve sticker roll 180–340mm, covering 10-50kg packaging capacities.

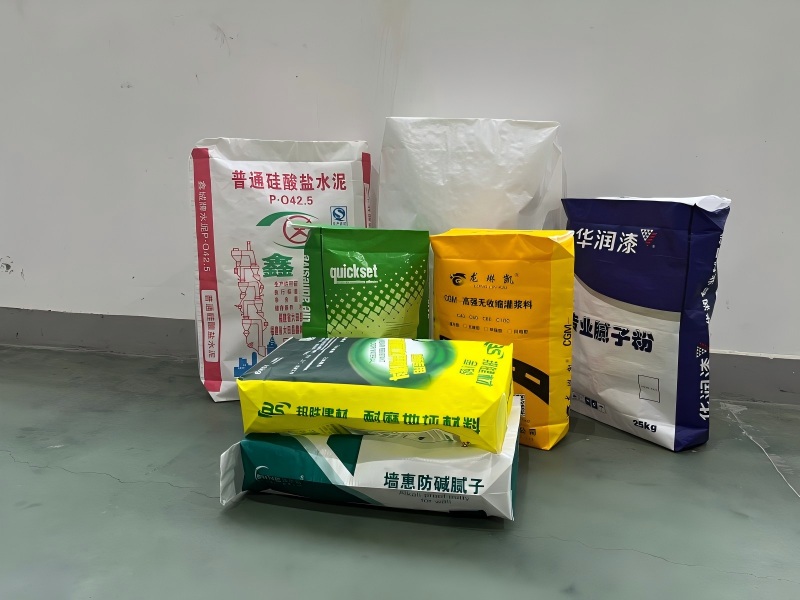

· Cement and building materials — PP woven valve bags for cement, dry mortar, putty powder

· Chemical industry — PE-lined valve bags for moisture-sensitive chemical powders and granules

· Agriculture and food — Paper-plastic composite bags for flour, feed, grains, and fertilizers

· Mineral processing — Heavy-duty PP/PE bags for carbon black, industrial salts, and mineral powders

All-Weather Durability for Global Operations

Built for diverse factory environments, the machine adopts heavy-duty welded steel frame and IP54 electrical enclosures. Core global brand components including Schneider PLC & servo, Panasonic/SICK/Omron sensors, NSK bearings, Japan SHIMPO reducers support steady operation from -20°C to 60°C.

Optional 160V-480V wide voltage power module suits overseas factories with unstable grid. Dust-proof cooling system is available for high-temperature, dusty mineral and cement plants.

AI-Powered Intelligent Quality Control

Optional Gachn AI visual inspection system equips 4K industrial cameras and deep learning algorithms to detect holes, uneven weaving, poor sealing, offset stickers and other defects. Defect rejection rate exceeds 96.5%, false negative rate below 0.15, with real-time production data export via HMI.

Comprehensive Global Support

· Turnkey factory layout design and export customs guidance

· Professional on-site commissioning within 30 days after machine arrival

· Multilingual illustrated operation manuals, staff training finished within 1-2 days

· Spare parts warehouses in India, Indonesia, Saudi Arabia, Nigeria for fast delivery

· 12-month full machine warranty, 3-year free control system software upgrade, 24-hour technical response

Conclusion

As packaging manufacturers face pressure to diversify product lines while controlling expenditure, a single machine capable of producing PE, PP and paper-plastic bags creates distinct competitive advantages. Gachn multi-material valve bag making machine balances flexibility, speed and long-term stability, backed by decades of packaging equipment R&D and global service network. Contact us to customize your exclusive bag production solution.

FAQ

What material types can this multi-material valve bag making machine process? It can continuously produce PE woven bags, PP woven valve sacks and paper-plastic composite bags on one production line, without replacing major forming parts.

What full range of bag sizes does the machine support? Overall bag length 410–910mm, effective length 330–750mm, width 300–620mm, inner valve 80–200mm, outer valve 130–300mm, suitable for 10kg to 50kg finished bags.

How long does it take to switch between different bag materials? The quick-change folding and heat sealing structure completes material and bag type switching within 30 minutes, minimizing production downtime.

Can this machine adapt to overseas factories with unstable voltage? Yes, the optional 160V-480V wide voltage power module supports severe grid fluctuation environments common in Southeast Asia, Africa and the Middle East.

Is the AI visual inspection system standard or optional? The AI visual defect detection system is an optional upgrade module that can be configured according to customers’ high-standard quality control demands.
